Reolink 16ch RLN16-410 12MP 4K 5MP 4MP PoE Network Video Recorder with Built-in 4TB HDD + 2 SATA Slots for Reolink HD IP Cameras
②Buyer is required to pay the remote fee, If a remote fee is incurred for an order shipped by DHL.
In order to ship out the package quickly, we recommend filling in the recipient information in English.
This Reolink RLN16-410 16-channel PoE NVR supports up to 12 megapixels resolutions. It works perfectly with all our 4MP/5MP/8MP/12MP PoE IP cameras for 24/7 recording, motion detections, live views, playback and more features.
1
An Excellent Night Vision
Great cameras aren't just measured by images in daytime. Reolink NVR RLN16-410 stands out for its incredibly excellent images at night.
24/7 Continuous Recording
- Pre-installed 4TB HDD(2 SATA Slots) for 24/7 recording.
- Support all cameras recording at the same time (up to 16 cameras).
- The motion detection recording function will trigger recording only when motion is detected. It's much flexible and helpful for longer recording.

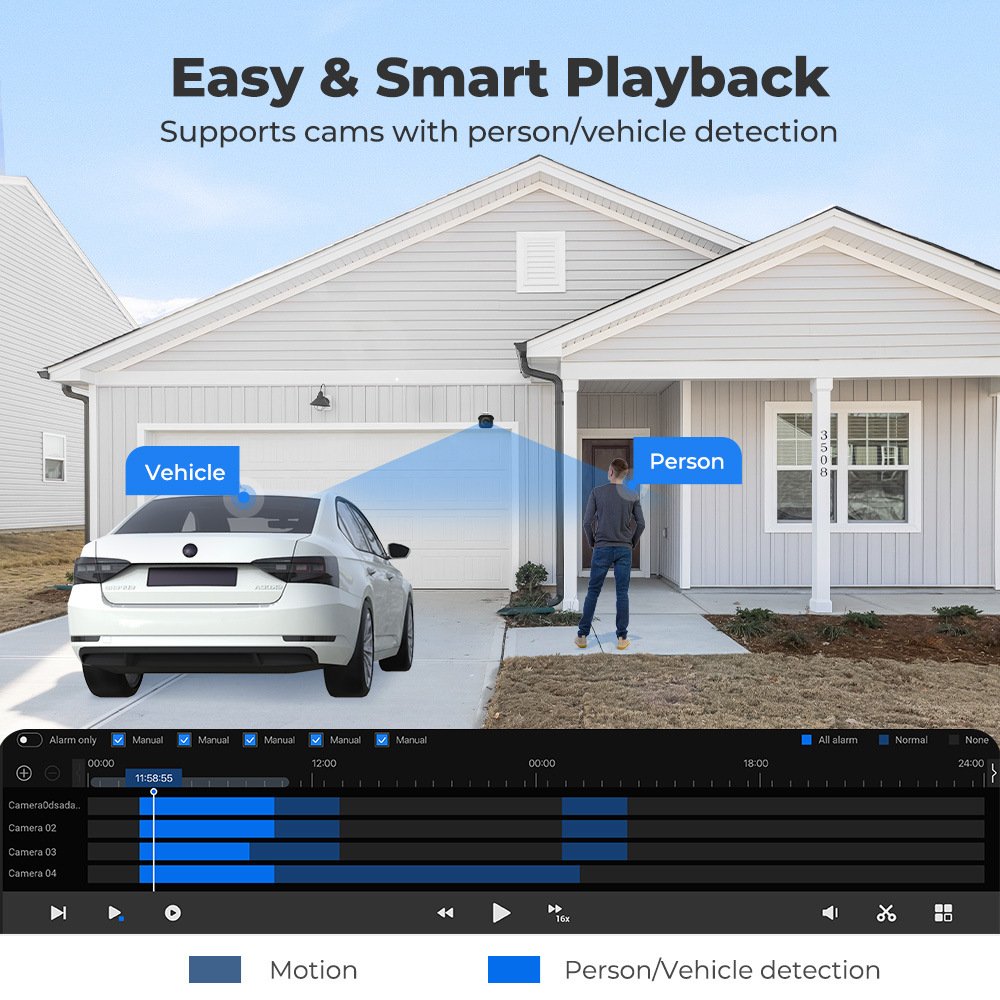

The playback feature of this Reolink RLK16-410 allows you to know the whole events.
Replay significant evidence or funny video records.
4-channel simultaneous playback
You can quickly search for any event that happened at any time.
The timer axis design under the split screen makes it convenient for you to freely go back to different days, hours, or minutes to see the events you missed.
1
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.
PoE – Easy Setup & Real Plug and Play
A real plug and play network video recorder! It features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can't be simpler for DIY enthusiasts.
Work with Reolink Wifi Camera and PoE Camera
RLN16-410 could work perfectly with Reolink PoE camera for 24/7 recording, motion detections, live views, playback and more features. And it also supports working with Reolink wifi camera if they are in the same LAN.
Remote Viewing, Anytime, from Anywhere
Free Firmware Update
Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more. For more features, refer to RLC-810B8-A NVR security system.(Click the picture to the link)

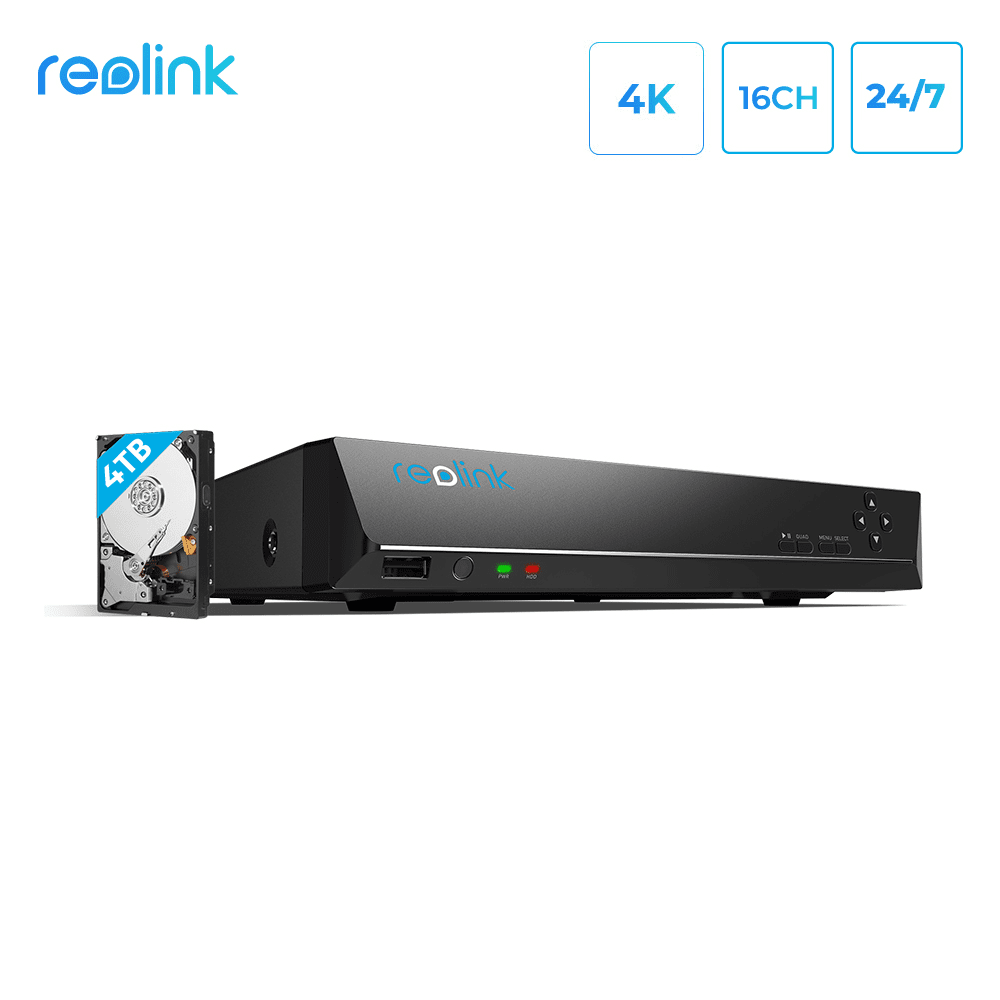

Details of RLN16-410
What's in the Box
RLN16-410-4K-PoE-NVR-Specifications | |
Model | RLN16-410 |
Hardware | V2 |
IP Video Input | PoE IP Camera x 16 |
Audio Input | Cameras with built-in mic |
Video Output | VGA, HDMI |
Display Resolution | HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 |
VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768 | |
Audio output | 1-channel, RCA |
Live View/Playback Resolution | 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p |
Video Format | H.265, H.264 |
Synchronous Playback | Up to 4 channels |
SATA | 2x SATAinterface (1xSeagate 4TBHDD included) |
Capacity | Up to 12TB (Max. 6TB capacity for each HDD) |
External HDD | No |
USB Interface | 2 x USB 2.0 |
Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN |
16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera | |
Max. Power Per Port | 25W |
Supported Standard | IEEE 802.3 af/at |
Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
Browser Supported | Firefox, Chrome, Edge, Safari |
OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substrea ms & 2 mainstreams) |
Power Supply | DC 52V/2.88A |
Power Consumption | <10W (without HDD&PoE) |
Working Environment | Temperature: -10°C~+55°C (14°F~131°F); Humidity: 10%~90% |
Dimensions | 330 x 45 x 285mm |
Weight | 2.4kg |
Limited Warranty | 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
