Hikvision Compatible 6MP PTZ Dome IP Camera 3X Zoom Built-in Mic IR20M IP66 CCTV Surveillance Security Camera APP View
1.What is"HIK Protocl"?
HIK products all have HIK Protocl and it support HIK camera plug and play, make it easy to be install with HIK NVR.
2.What is"HIK compatible"?
It mean this camera support plug & play with HIK NVR(Also HIK software).
You don't need to manual setting camera IP and password etc...
Just plug in and camera will work!
3. When I installed the camera, How Can I find this camera?
download software:AJDevTools(Recommend)
http://www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exe
use this software search the camera.

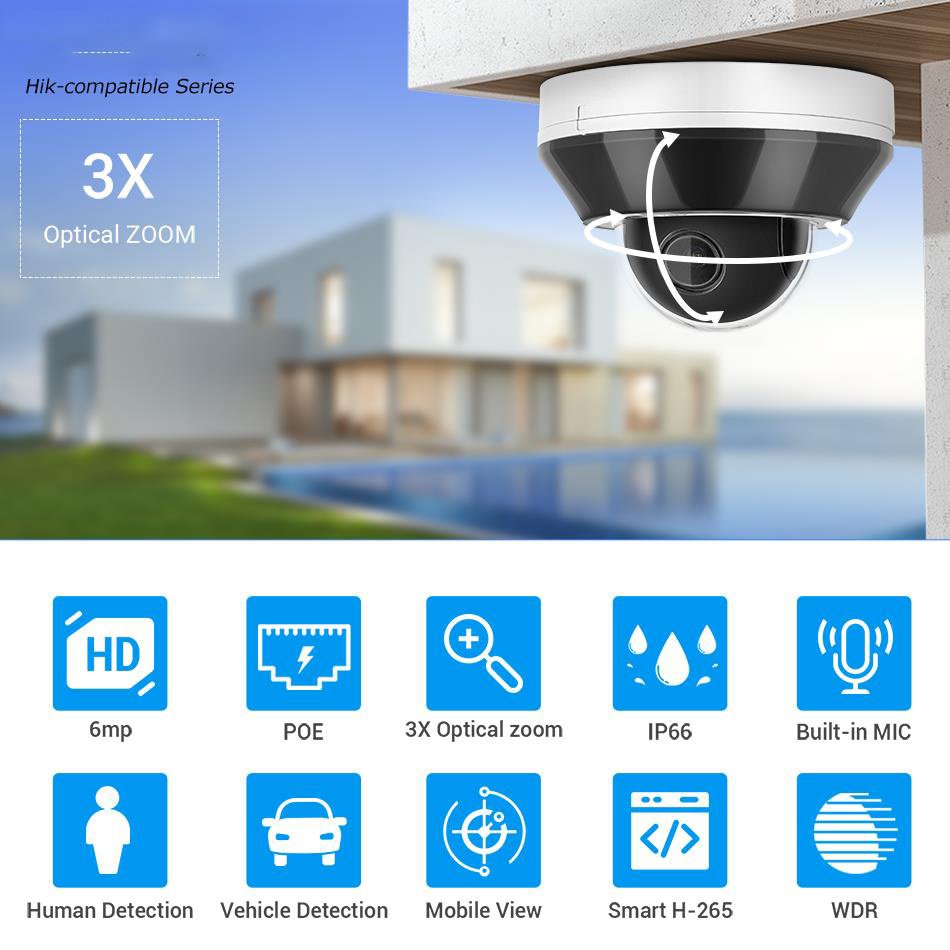

6MP 3X Human & Vehicle Detection POE PTZ Dome
1/2.8" Sony low-light CMOS sensor
6MP 25fps resolution 3072x2048
low illumination 0.01Lux
Day/Night, AWB/MWB, BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
D-WDR, Mirror, flip, Defogging
Multiply Style OSD Overlay, Motion Detection, Privacy Mask
RTSP and O-n-v-i-f 17.06 compatible with many third-party NVR
smart264/265 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
Lightning protection 4000V
Strong water-proof housing IP66
3 pcs Array IR Leds, IR distance 20-30 meters
Network PTZ control , 3X optical zoom
HD 2.8-8mm motorized AF lens
Camera
Image Sensor:1/2.8" Sony CMOS
Effective Pixels:6 megapixels
Electronic Shutter:AUTO, 1/25s ~ 1/100000s
Min. Illumination:0.01Lux@F1.2(AGC ON), 0Lux IR on
Day/Night:Auto/Color/(B/W)/Timing
WDR:Digital WDR
White Balance:Auto/Manual
AGC/BLC/HLC:Support
DNR:2D/3D DNR
Other:AGC,Motion Detection,Privacy Mask,Flip,OSD overlay,Human body detection, Vehicle detection
Encode
Video Standard:smart264/265
Video Resolution:Main Stream:25fps@6MP(3072x2048)/25fps@5MP(2592x1944)/4MP(2592x1520)/3MP, 30fps@1080P/720P
Sub stream: 25fps@D1/VGA/360P/CIF, etc.
Video Bitrates:512Kbps - 8Mbps, VBR/CBR
Audio Standard:G.711-u/G.711-a
Built-in Mic:Yes
IR Led
IR Led:3 pcs Array IR Led
IR Distance:20-30 M
Lens
Focal length:2.8-8mm motorized AF lens
Zoom:3x optical zoom
PTZ
Pan/Tilt Range:Pan: 0° ~ 350°; Tilt: 0° ~ 90°
Preset Point:255
Manual Control Speed:Pan: 0.5° ~80° /s; Tilt: 0.5° ~60° /s
Power-off Recovery:Support
Network Services
Protocol:HTTP/RTSP/FTP/DST/SMTP/DHCP/NTP/NFS, etc.
P2P:Yes
Web:IE , Firefox (32bit esr), etc.
Media:CMS, Android, IOS
O-N-V-I-F:17.06 compatible
General
Network Port:1-RJ45, 100Mbps, POE optional
Power Supply:12 VDC ± 10%
Power Consumption:< 10 W
Operating Temp.:-30℃-(+60)℃, 10%-90%Rh

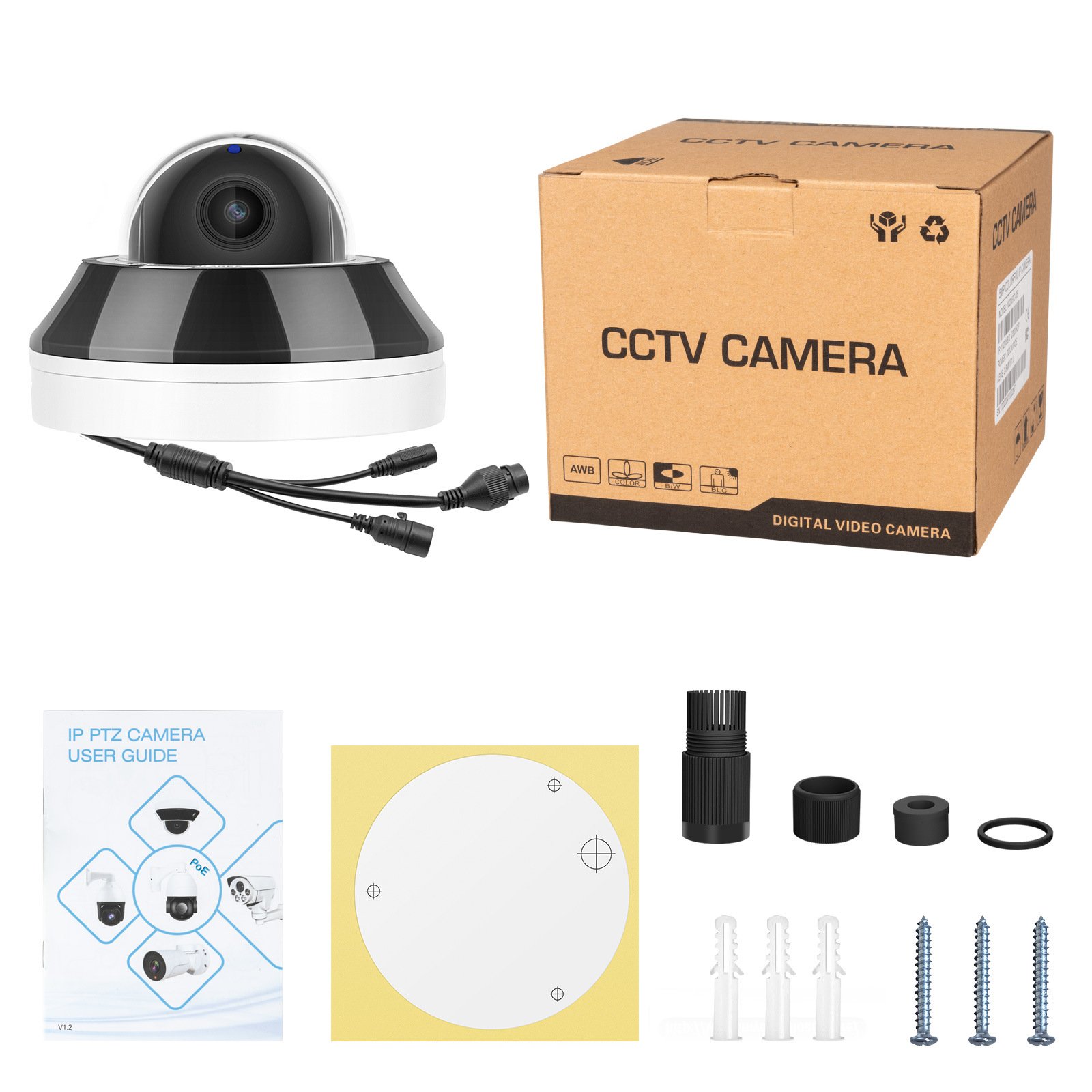

1. 6MP 3X PTZ IPC*1
2. Waterproof accessories *1
3. Screw*1 lot
4. User guide *1
5. power adapter *1
